Acoustic Camera - SoundCam Bionic L microphone array

SoundCam Bionic locates sound sources in real time and immediately displays them in an image.

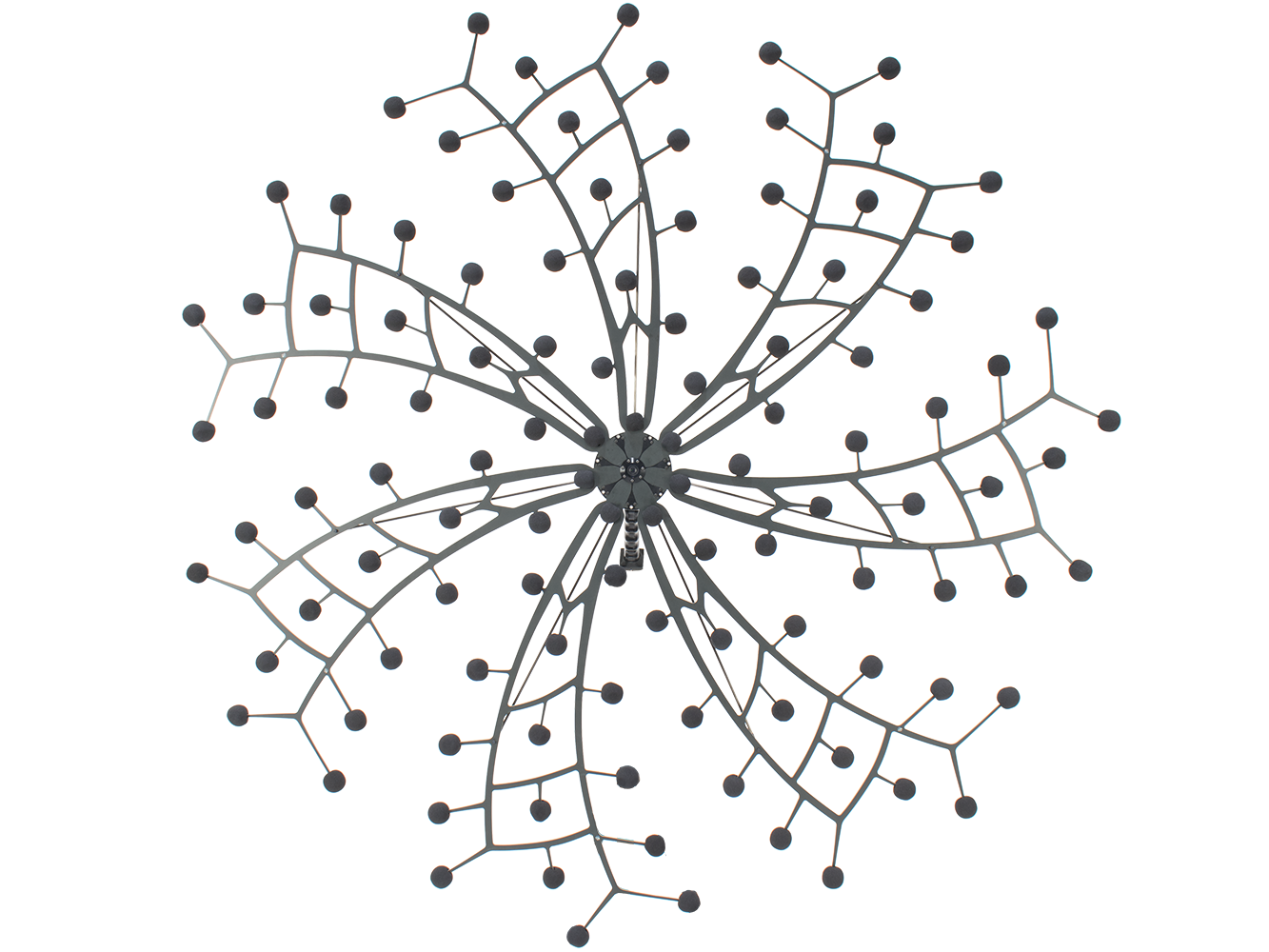

The SoundCam Bionic L microphone array has a diameter of 170 cm and consists of 112 microphones. It is engineered for use from 150 Hz in Farfield. The optimized microphone distribution guarantees a perfect sound source localization and a high dynamic range. The seven detachable microphone arms (setup about 1 minute) make the system very mobile with a small package size. The data acquisition hardware is integrated in the acoustic camera so there is no need to use external measuring equipement. Using the handle on the acoustic camera makes the system perfect for mobile use. Typical applications are wind power plants, gear, industrial facilities and environmental measurement.

You are interested in our acoustic camera with the SoundCam Bionic L microphone array → Send us your questions

size of the acoustic camera 1700 mm
Spezifikationen der akustischen Kamera <33 dB to 120 dB with up to 40 dB dynamic
number of microphones of the acoustic camera 112 MEMS-microphones, 24 bit resolution,
Samplerate 48 kHz, frequencyrange 10 Hz - 24 kHz
recommend frequency range of the acoustic camera from <40 Hz with the holgraphy-method
from 150 Hz with beamforming-methods; below with decreased resolution
material of the acoustic camera Aluminium and PCB
weight of the acoustic camera 5,1 kg
SoundCam Bionic L Microphone Array Key Specifications
Beamforming results of a train acoustic camera
Acoustic result of a train (Beamforming)
Beamforming results of a door leakage detection acoustic camera
Acoustic result of a door leakage detection
